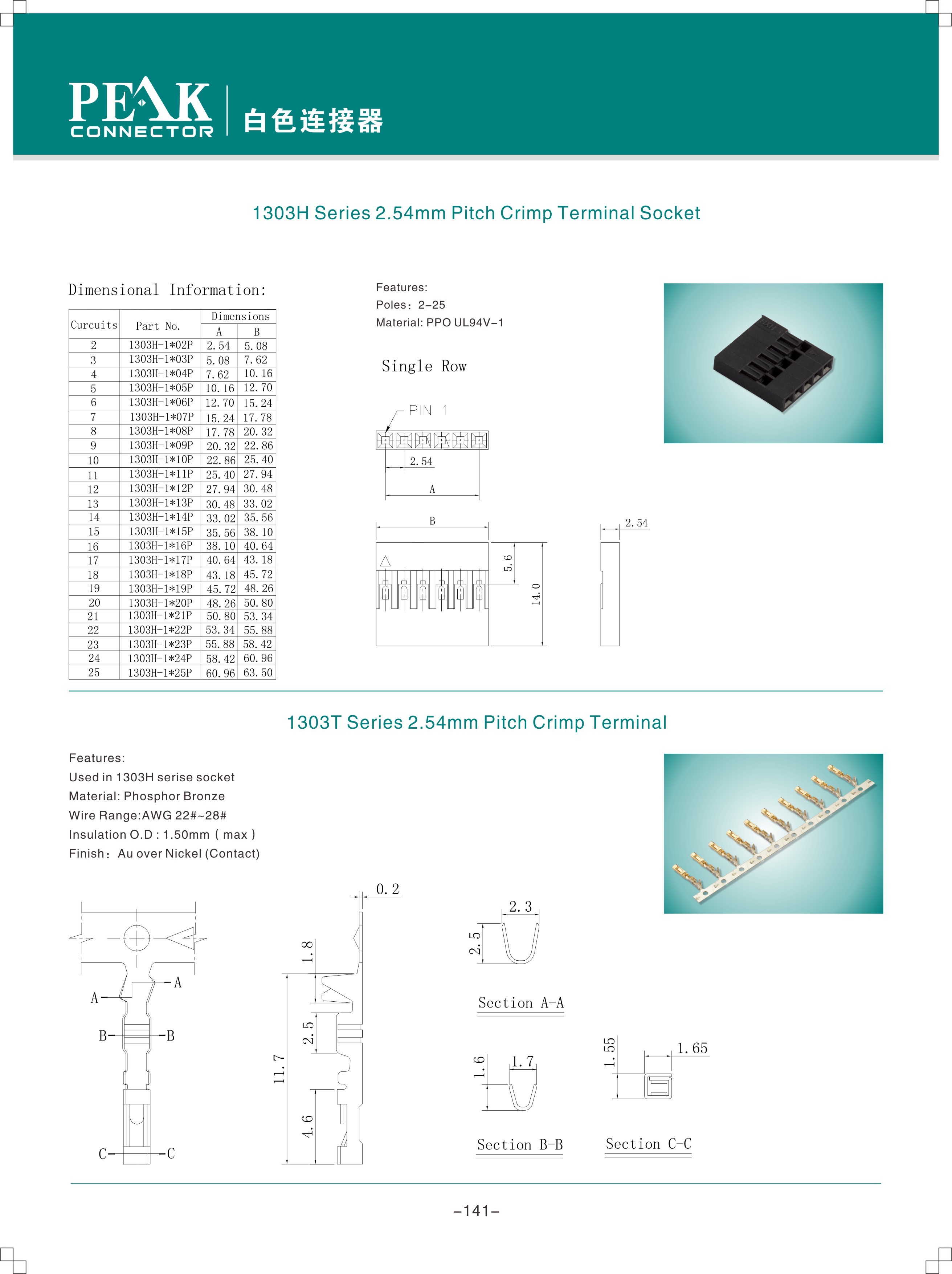

1303H、1303T 2.54mm Pitch Single Row Housing & Crimp Terminal

2.54mm间距
单排连接器壳、连接器端子

  1. 基本信息
  2. 产品参数
  3. 文件下载

2.54mm间距

单排连接器壳、连接器端子

示例型号  壳:1303H-1*05P、端子:1303T-G

壳芯数:02P-25P

配套产品:

 1.201S-1*xxPG-6.0/3.0

 2.201R-1*xxPG-6.0/3.0

3.201U-1*xxPG-6.0/3.0

材料 MATERIAL

绝缘Insulator:P.P.O UL94V-1(Black)

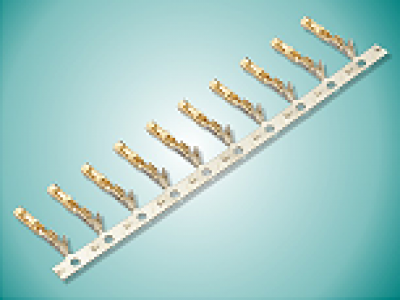

端子Terminal:Phosphor Bronze

接触镀层Contact Plated:Gold-plated


技术参数 SPECIFICATIONS

额定电压Voltage Rating: 250V AC/DC

额定电流Current Rating:3A

耐压Withstanding Voltage:1000V AC/minute

接触电阻Contact Resistance:≤20mΩ

绝缘电阻Insulation Resistance:≥1000MΩ

工作温度Operating Temperature:-25°C to +85°C
