2.54mm间距

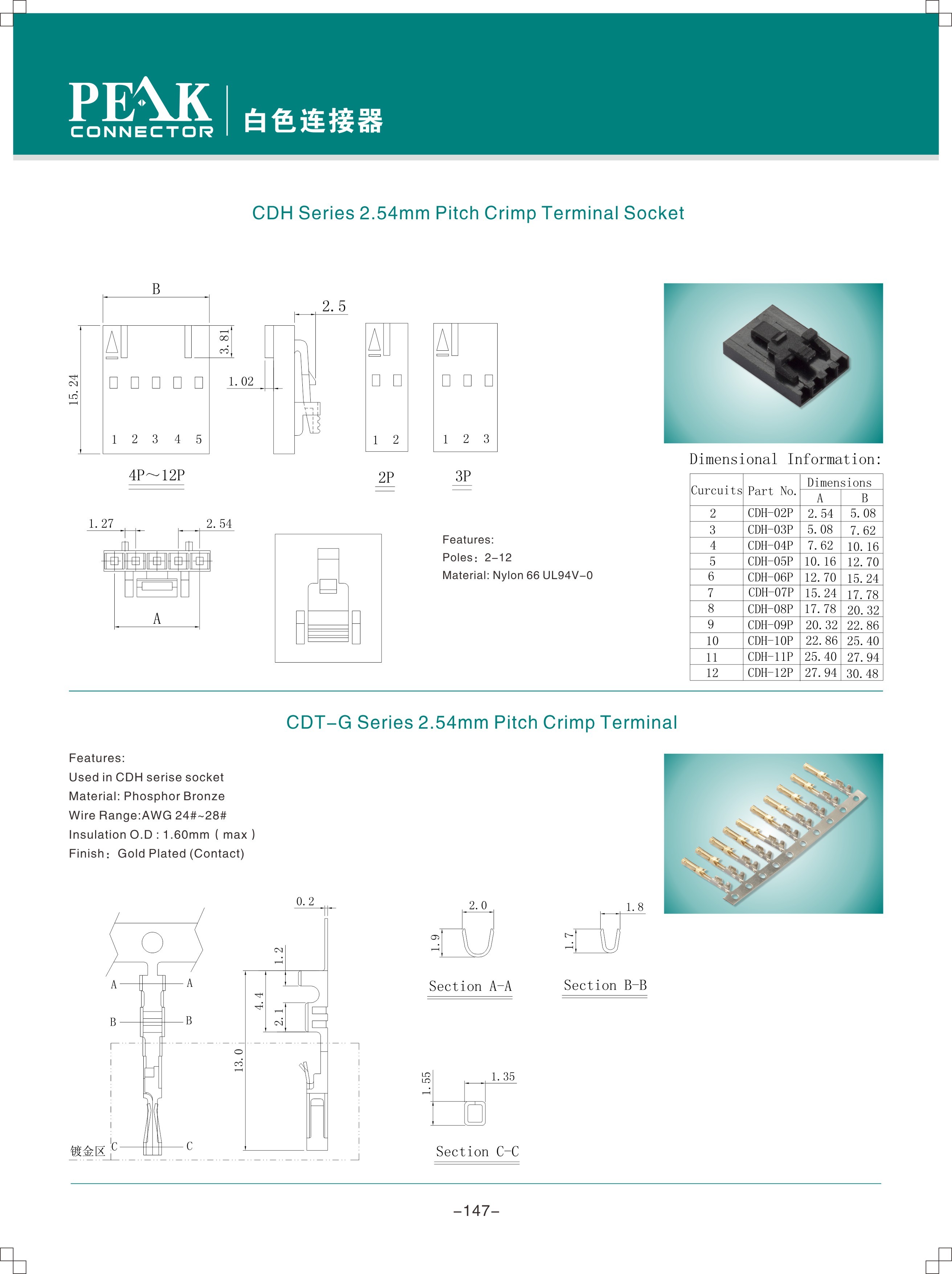

  1. CDH、CDT 2.54mm Pitch Housing & Crimp Terminal
  2. CDH、CDT 2.54mm Pitch Housing & Crimp Terminal

CDH、CDT 2.54mm Pitch Housing & Crimp Terminal

2.54mm间距
连接器壳、连接器端子
壳带卡扣

  1. 基本信息
  2. 产品参数
  3. 文件下载

2.54mm间距

连接器壳、连接器端子

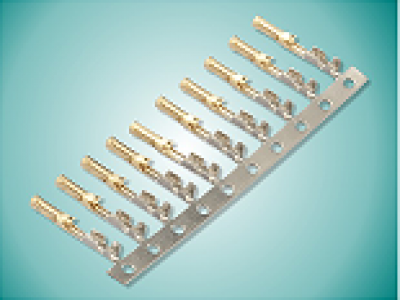

示例型号  壳:CDH-05P、端子:CDT-G

壳芯数:02P-12P

配套产品:CDS、CDR



材料 MATERIAL

绝缘Insulator:Nylon 66 UL94V-0

端子Terminal:Phosphor Bronze

接触镀层Contact Plated:Gold-plated


技术参数 SPECIFICATIONS

额定电压Voltage Rating: 250V AC/DC

额定电流Current Rating:2.5A

耐压Withstanding Voltage:800V AC/minute

接触电阻Contact Resistance:≤20mΩ

绝缘电阻Insulation Resistance:≥1000MΩ

工作温度Operating Temperature:-25°C to +85°C
